Home HVAC Failure

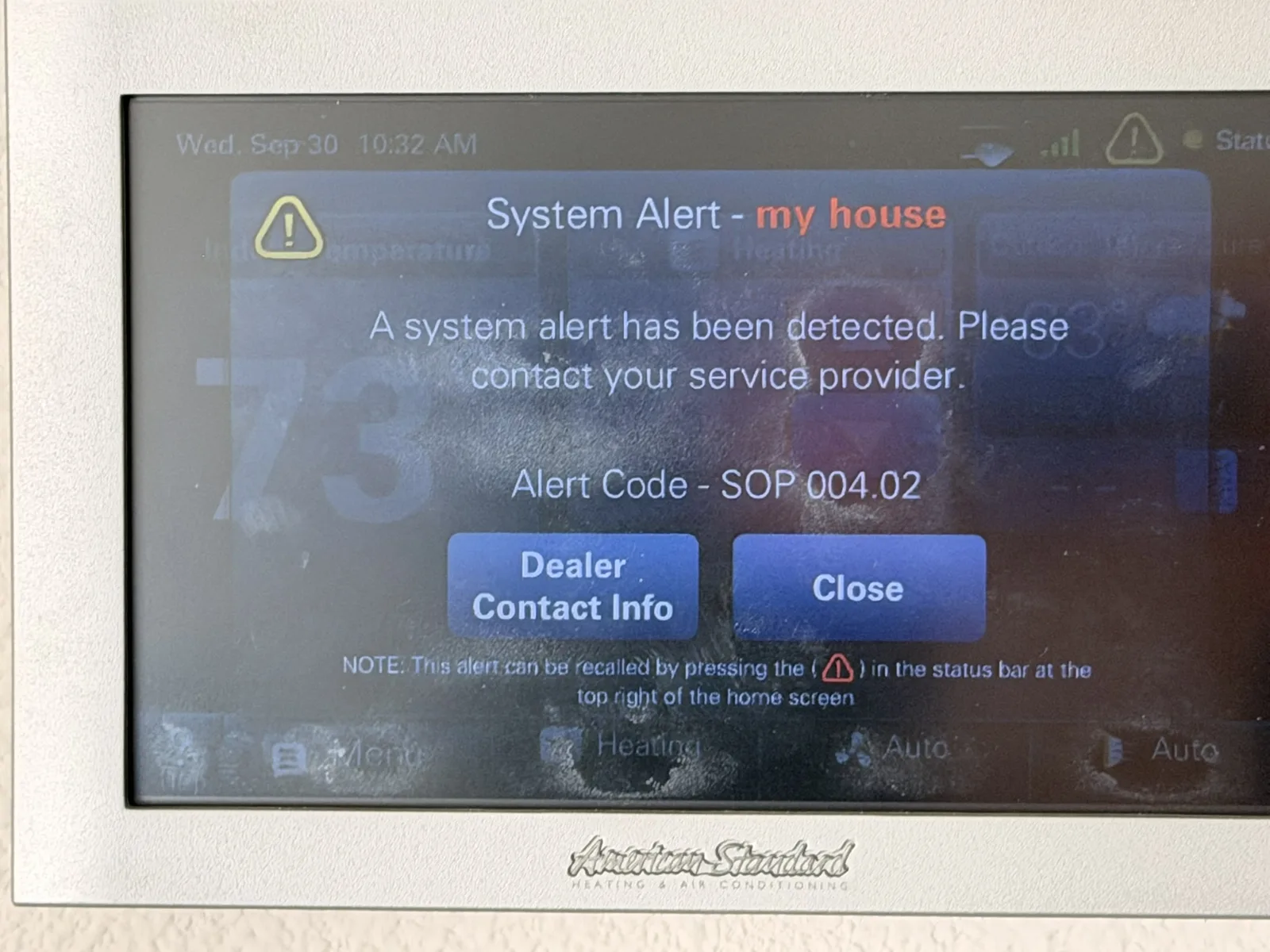

In the fall of 2026 I noticed my home HVAC system was offline, and the display had the error:
System Alert Code: SOP 004.02

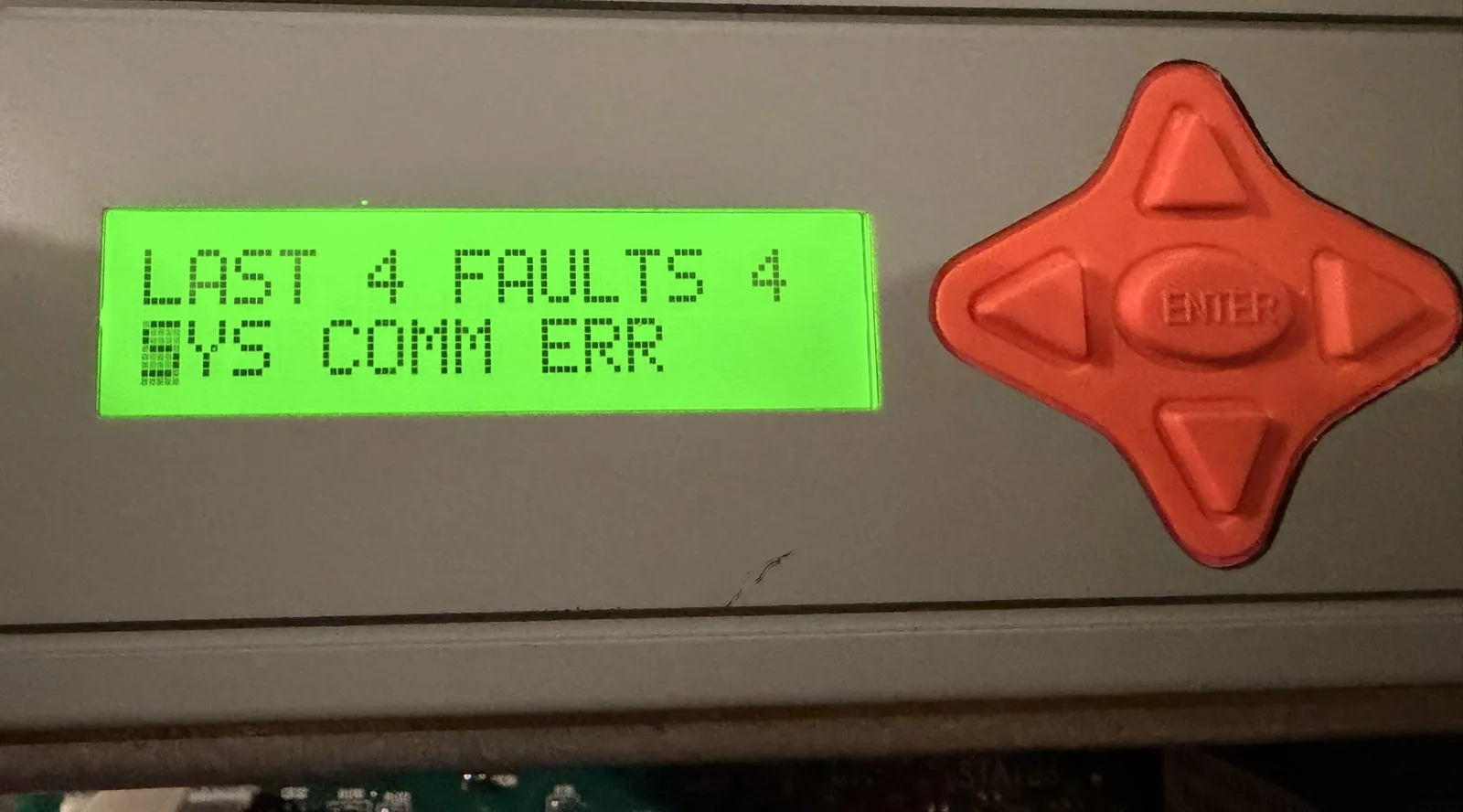

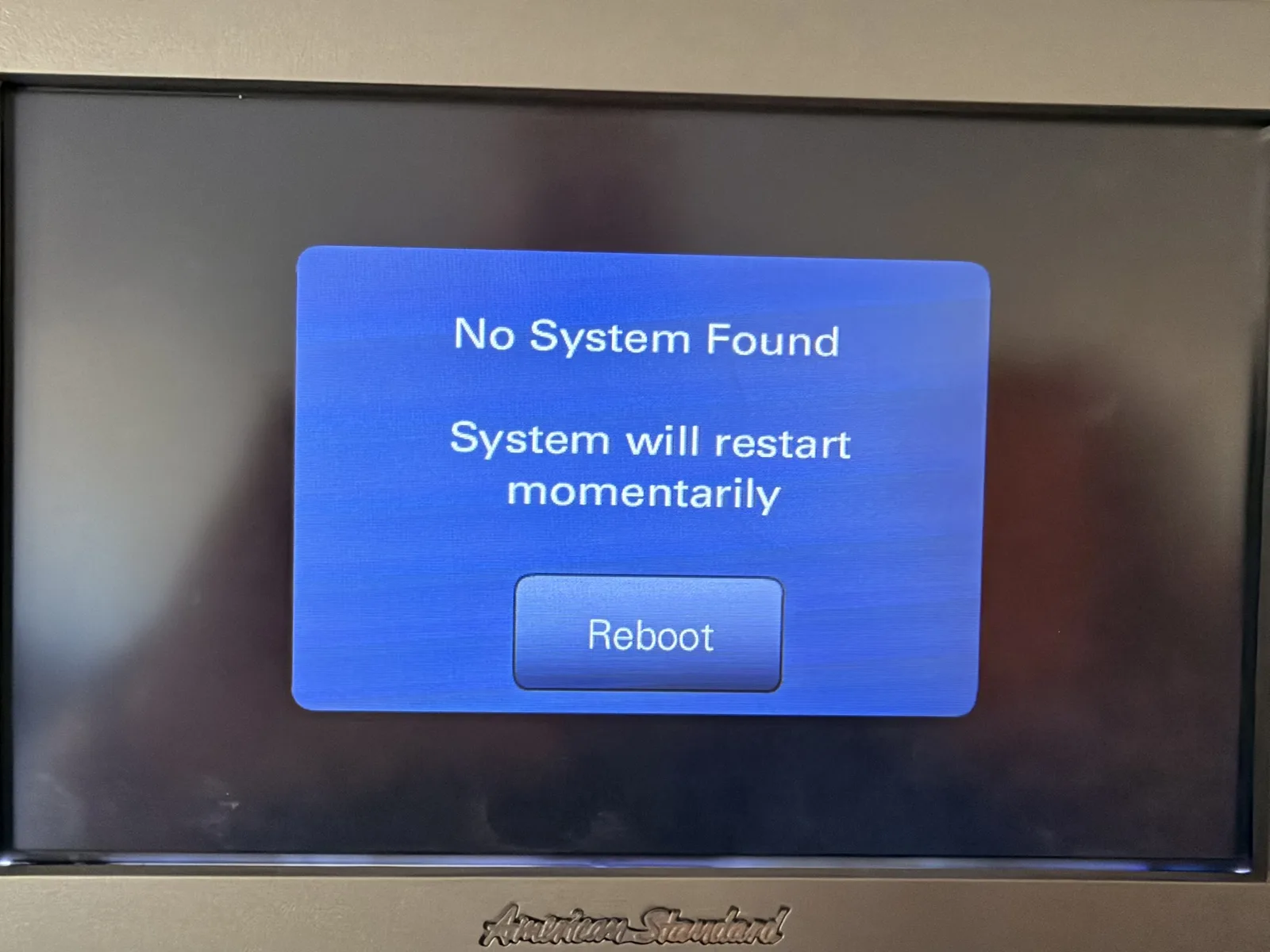

I noticed that the main board on the internal system had a red flashing LED that would flash 10 times and then repeat. It appeared that the system board was no longer communicating with the house display unit, an American Standard XL950.
A head unit that had already been acting strange
The head unit was previously acting strange, in that it was very slow to respond, often taking 3–5 seconds to respond to a touch. It showed it was connected to Wi-Fi, but I could not turn off Wi-Fi, or change which SSID it was connected to. I did not see any device on the network that was using the IP address the head unit was reporting that it was.
A proprietary system, and a thermostat I couldn’t use
I was disappointed in my research to find out that American Standard (and Trane) use a proprietary communication system between the heating and air conditioning and the head unit. That meant I couldn’t get the device I wanted, an Ecobee thermostat, which would have been considerably less expensive.
Using a modern thermostat, I would miss out on the ability to control the system’s multi-stage heat pump, natural gas, and fan controls. These would all become on/off controls instead of step-controlled. Had I known this, I would have preferred to not have these features in the HVAC system, as I question their proposed efficiency benefits in my particular home.
The replacement
I purchased a Trane XL1050 — the same unit and firmware as the American Standard — which appears to be the last generation of head unit that will work with my system, and installed it. I had noted each of the settings in the existing head unit so that I could configure the new one with similar settings.

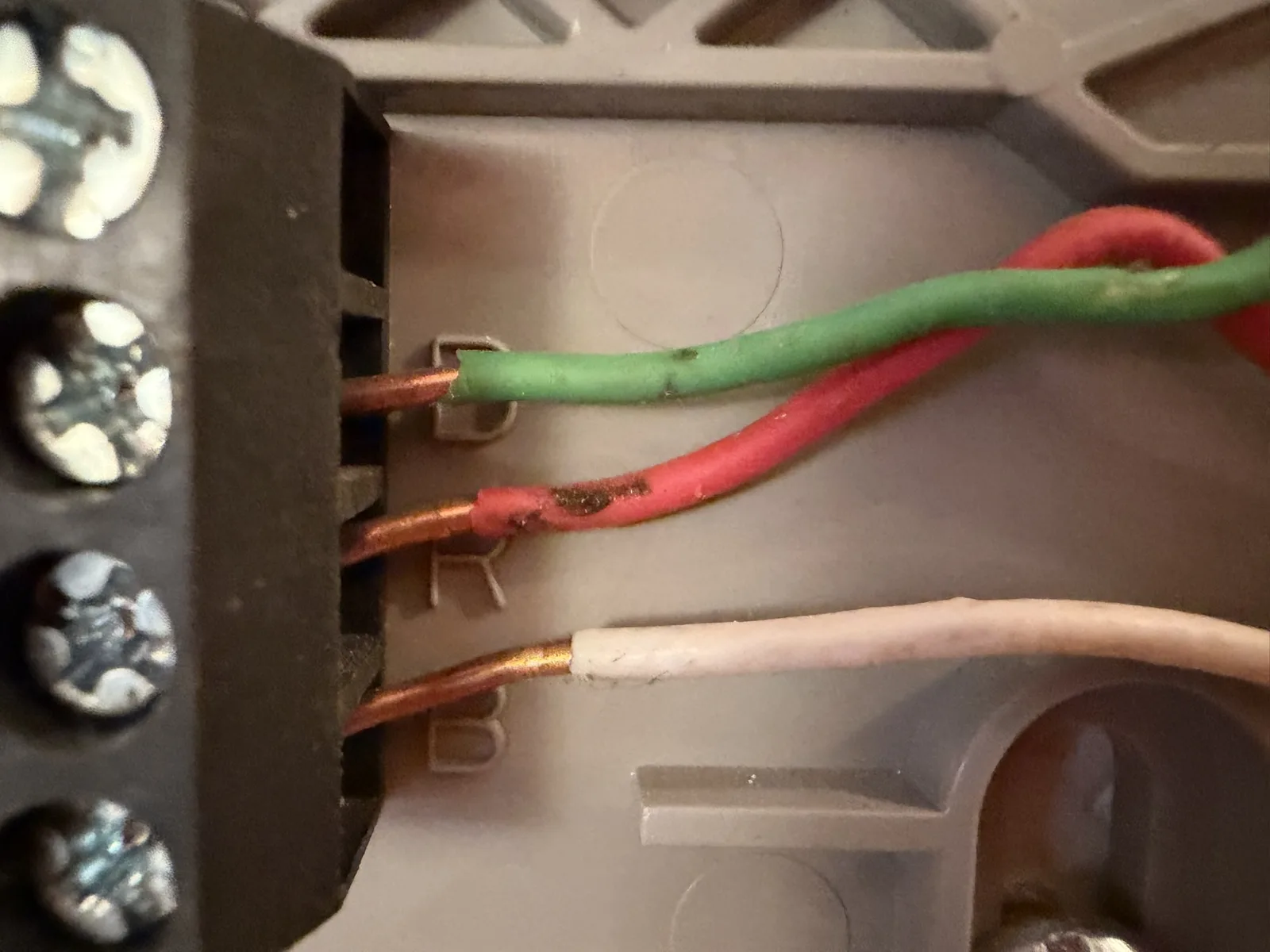

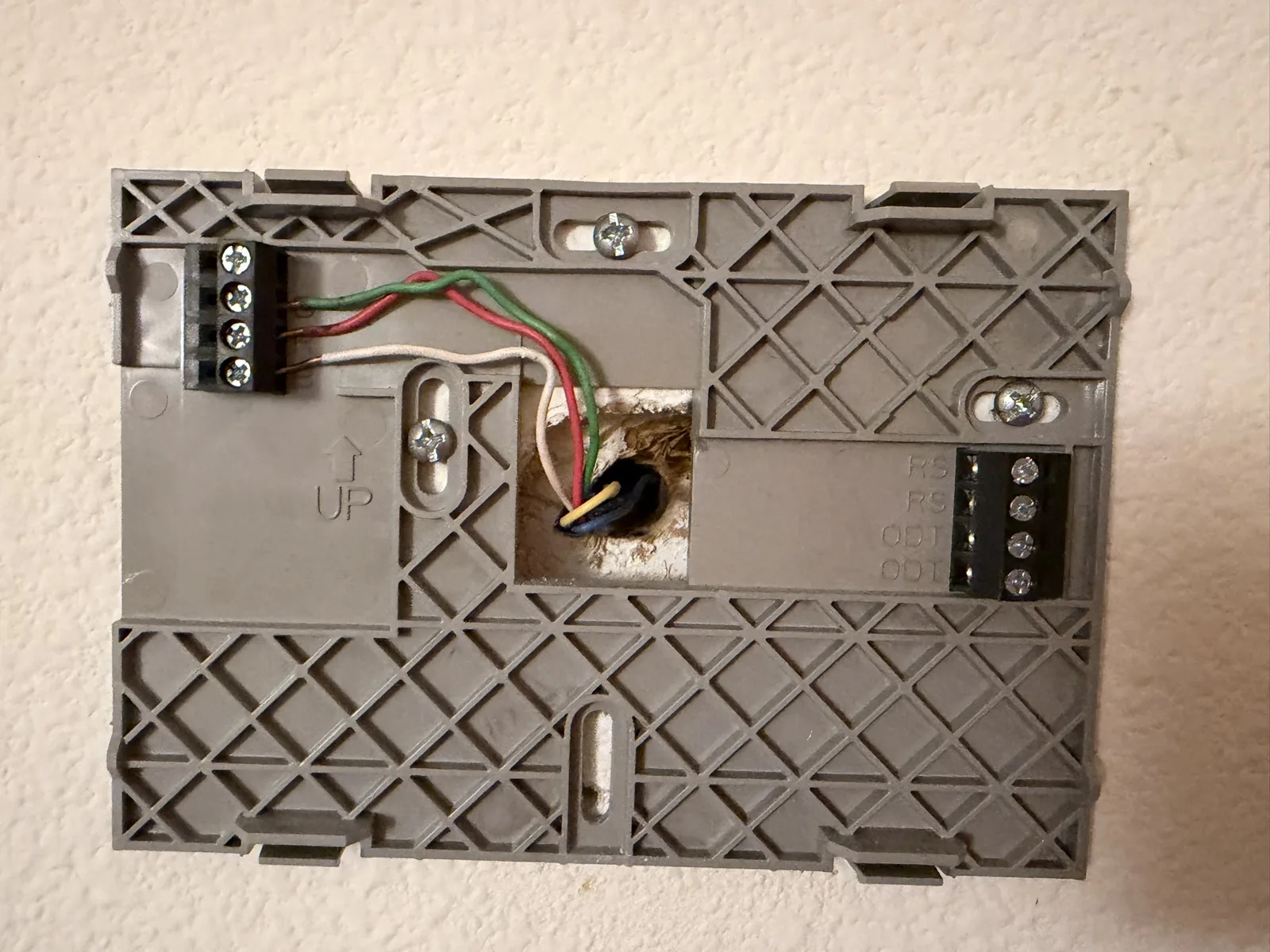

I took note of the three wires labeled D, R, and B, as these were in a different configuration on the back of the new unit.

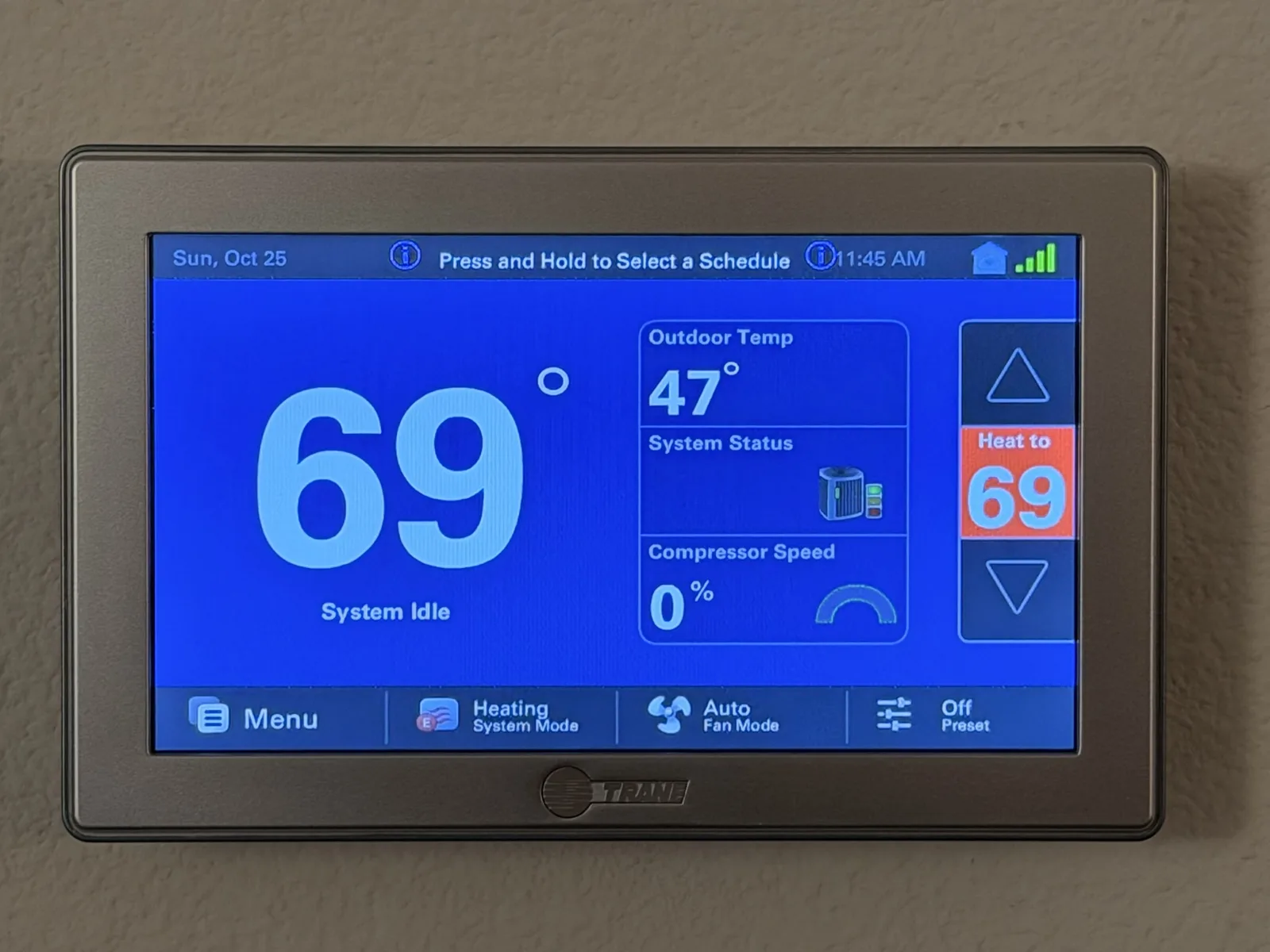

After powering the system back on, I went through the setup wizard on the new device and connected to the internet. Now the thermostat is reachable from the American Standard app. Again, I wish there were options for adding to Apple Home — more research and experimentation for the future.
So far, the new head unit is working great, or about the same as previously. The timing of the failure worked out, as summer had just transitioned into fall. The daytime temperature and nighttime temperature were so mild we didn’t really need A/C or heat during the time troubleshooting and waiting for parts delivery.
